ICS8741004I Datasheet - Integrated Device Technology

ICS8741004I, DIFFERENTIAL-TO-LVDS/0.7V DIFFERENTIAL PCI EXPRESS JITTER ATTENUATOR

www.DataSheet4U.com PRELIMINARY DIFFERENTIAL-TO-LVDS/0.7V DIFFERENTIAL PCI EXPRESS™ JITTER ATTENUATOR ICS8741004I General .
The ICS8741004I is a high performance Differential-to-LVDS/0.

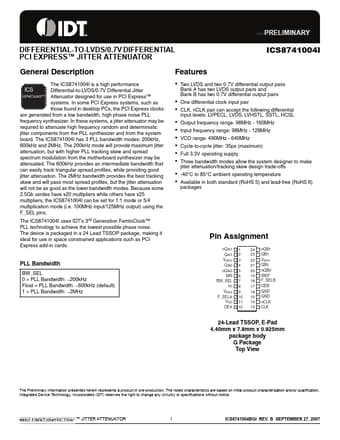

datasheet Preview Page 1 from Datasheet4u.com

ICS8741004I_IntegratedDeviceTechnology.pdf

ICS8741004I Datasheet Preview — Preview of ICS8741004I PDF

Datasheet Details

Part number:

ICS8741004I

Manufacturer:

Integrated Device Technology

File Size:

1.64 MB

Description:

DIFFERENTIAL-TO-LVDS/0.7V DIFFERENTIAL PCI EXPRESS JITTER ATTENUATOR

Features

* Two LVDS and two 0.7V differential output pairs Bank A has two LVDS output pairs and Bank B has two 0.7V differential output pairs One differential clock input pair CLK, nCLK pair can accept

Applications

* such as PCI Express add-in cards. Pin Assignment nQA1 QA1 VDDO QA0 nQA0 MR BW_SEL nc VDDA F_SELA VDD OEA 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 nQB1 QB1 VDDO QB0 nQB0 IREF F_SELB OEB GND GND nCLK CLK PLL Bandwidth BW_SEL 0 = PLL Bandwidth: ~200kHz Float = PLL Bandwidth: ~60
