ICS87002-05 - 1:2 LVCMOS/LVTTL-to-LVCMOS/LVTTL Zero Delay Buffer

Product Overview

IDT

ICS87002-05 1:2 LVCMOS/LVTTL-to-LVCMOS/LVTTL Zero Delay Buffer by IDT - Datasheet Preview — Datasheet preview – ICS87002-05

Datasheet Details

Part number	ICS87002-05
Manufacturer	IDT
File Size	655.55 KB
Description	1:2 LVCMOS/LVTTL-to-LVCMOS/LVTTL Zero Delay Buffer
Datasheet	ICS87002-05 Datasheet

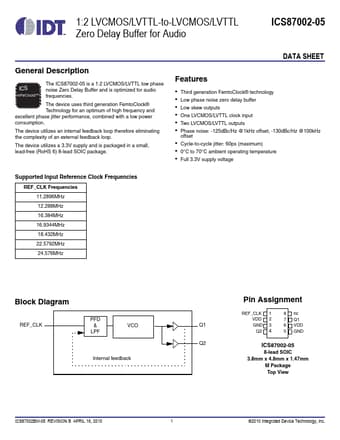

Additional preview pages of the ICS87002-05 datasheet.

Product details

Description

ICS HiPerClockS™ The ICS87002-05 is a 1:2 LVCMOS/LVTTL low phase noise Zero Delay Buffer and is optimized for audio frequencies.The device uses third generation FemtoClock® Technology for an optimum of high frequency and excellent phase jitter performance, combined with a low power consumption.The device utilizes an internal feedback loop therefore eliminating the complexity of an external feedback loop.The device utilizes a 3.3V supply and is packaged in a small, lead-free (RoHS 6) 8-le

Features

Third generation FemtoClock® technology.
Low phase noise zero delay buffer.
Low skew outputs.
One LVCMOS/LVTTL clock input.
Two LVCMOS/LVTTL outputs.
Phase noise: -125dBc/Hz @1kHz offset; -130dBc/Hz @100kHz offset.
Cycle-to-cycle jitter: 60ps (maximum).
0°C to 70°C ambient operating temperature.
Full 3.3V supply voltage Supported.
