ICS81006I - VCXO-TO-LVCMOS OUTPUTS

Datasheet Summary

Description

The ICS81006I is a high performance, low jitter/ IC S low phase noise VCXO and is a member of the HiPerClockS™ HiPerClockS™ family of high performance clock solutions from IDT.

Features

  • Six LVCMOS/LVTTL outputs, 20Ω nominal output impedance.
  • Output Q5 can be selected for ÷1 or ÷2 frequency relative to the crystal frequency.
  • Output frequency range: 12MHz to 40MHz.
  • Crystal pull range: ± 90ppm (typical).
  • Synchronous output enable places outputs in High-Z state.
  • On-chip filter on VIN to suppress noise modulation of VCXO.
  • VDD/VDDO combinations 3.3V/3.3V 3.3V/2.5V 3.3V/1.8V 2.5V/2.5V 2.5V/1.8V.
  • 4mm x 4mm 20 Lead.

📥 Download Datasheet

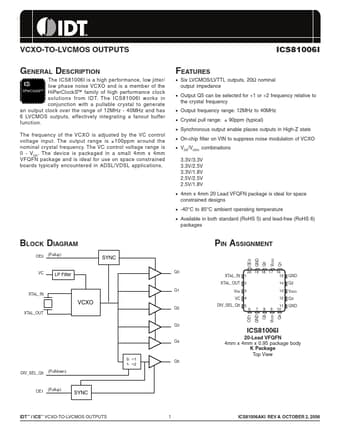

Datasheet preview – ICS81006I

Datasheet Details

Part number ICS81006I
Manufacturer IDT
File Size 676.80 KB
Description VCXO-TO-LVCMOS OUTPUTS
Datasheet download datasheet ICS81006I Datasheet
Additional preview pages of the ICS81006I datasheet.
Other Datasheets by IDT

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com VCXO-TO-LVCMOS OUTPUTS ICS81006I GENERAL DESCRIPTION The ICS81006I is a high performance, low jitter/ IC S low phase noise VCXO and is a member of the HiPerClockS™ HiPerClockS™ family of high performance clock solutions from IDT. The ICS81006I works in conjunction with a pullable crystal to generate an output clock over the range of 12MHz - 40MHz and has 6 LVCMOS outputs, effectively integrating a fanout buffer function. The frequency of the VCXO is adjusted by the VC control voltage input. The output range is ±100ppm around the nominal crystal frequency. The VC control voltage range is 0 - V DD . The device is packaged in a small 4mm x 4mm VFQFN package and is ideal for use on space constrained boards typically encountered in ADSL/VDSL applications.
