ICS810251I Datasheet - Integrated Device Technology

VCXO and Synchronous Ethernet Jitter Attenuator

ICS810251I Features

* One single-ended output (LVCMOS or LVTTL levels), output Impedance: 15 Phase jitter attenuation by the VCXO-PLL using a 25MHz pullable external crystal (XTAL) Input frequencies: 25MHz or 125MHz Output frequenc

ICS810251I General Description

The ICS810251I is a high performance, low jitter/low phase noise VCXO. The ICS810251i uses a low frequency and low cost pullable crystal to achieve jitter attenuation for synchronous Ethernet applications. The ICS810251I can take an input of either 25MHz or 125MHz and produce a single LVCMOS output .

ICS810251I Datasheet (464.19 KB)

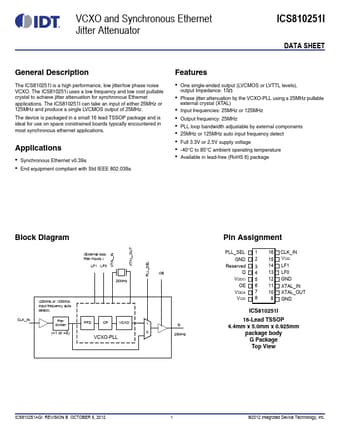

ICS810251I Datasheet Preview — Preview of ICS810251I PDF

Datasheet Details

Part number:

ICS810251I

Manufacturer:

Integrated Device Technology

File Size:

464.19 KB

Description:

Vcxo and synchronous ethernet jitter attenuator.
