ICS813001I - LVPECL FEMTOCLOCK-TM PLL

ICS813001I Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS813001I DUAL VCXO W/3.3V, 2.5V LVPECL FEMTOCLOCK™ PLL .
The ICS813001I is a dual VCXO + FemtoClock™ Multiplier designed for use in Discrete PLL HiPerClockS™ loops.

ICS813001I Features

* One 3.3V or 2.5V LVPECL output pair
* Two selectable crystal oscillator interfaces for the VCXO, one differential clock or one LVCMOS/LVTTL clock inputs
* CLK1/nCLK1 supports the following input types: LVPECL, LVDS, LVHSTL, SSTL, HCSL
* Crystal operating frequency r

ICS813001I Applications

* (among others): SONET, Ethernet, Fibre Channel, HDTV, MPEG
* RMS phase jitter @ 622.08MHz (12kHz - 20MHz): 0.84 (typical)
* Supply voltage modes: VCC/VCCO 3.3V/3.3V 3.3V/2.5V 2.5V/2.5V
* -40°C to 85°C ambient operating temperature
* Available in both, Standard and RoH

📥 Download Datasheet

Preview of ICS813001I PDF

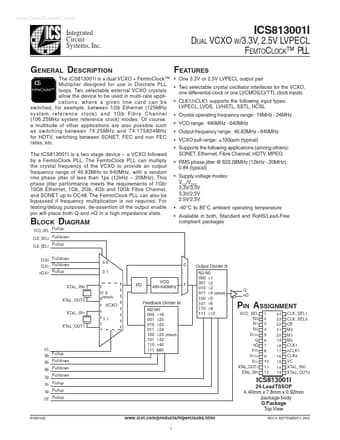

datasheet Preview Page 2 datasheet Preview Page 3
