ICS844003I - CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER

Product Overview

ICS

ICS844003I CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER by ICS - Datasheet Preview — Datasheet preview – ICS844003I

Datasheet Details

Part number	ICS844003I
Manufacturer	ICS
File Size	220.79 KB
Description	CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER
Datasheet	ICS844003I Datasheet

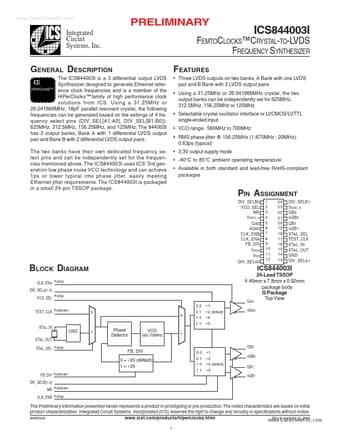

Additional preview pages of the ICS844003I datasheet.

Product details

Description

The ICS844003I is a 3 differential output LVDS Synthesizer designed to generate Ethernet referHiPerClockS™ ence clock frequencies and is a member of the HiPerClocks™ family of high performance clock solutions from ICS.

Features

Three LVDS outputs on two banks, A Bank with one LVDS pair and B Bank with 2 LVDS output pairs.
Using a 31.25MHz or 26.041666MHz crystal, the two output banks can be independently set for 625MHz, 312.5MHz, 156.25MHz or 125MHz.
Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input.
VCO range: 560MHz to 700MHz.
RMS phase jitter @ 156.25MHz (1.875MHz - 20MHz): 0.63ps (typical).
3.3V output supply mode.
-40°C to 85°.
