ICS844004I-01 - CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER

The ICS844004I-01 is a 4 output LVDS Synthesizer optimized to generate Ethernet reference clock HiPerClockS™ frequencies and is a member of the HiPerClocks TM family of high performance clock solutions from ICS.

Using a 25MHz 18pF parallel resonant crystal, the following frequencies can be generated

ICS844004I-01 Features

* Four LVDS outputs

* Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input

* Supports the following output frequencies: 156.25MHz, 125MHz, 62.5MHz

* VCO range: 560MHz - 680MHz

* RMS phase jitter @ 156.25MHz, using a 25MHz crystal (1.875MH

ICS844004I-01_ICS.pdf

Preview of ICS844004I-01 PDF

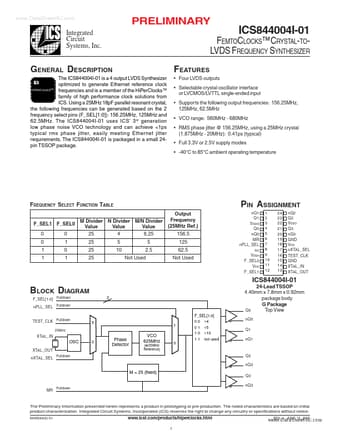

ICS844004I-01 Datasheet Preview Page 2 ICS844004I-01 Datasheet Preview Page 3
