ICS844003I-01 - CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER

The ICS844003I-01 is a 3 differential output LVDS Synthesizer designed to generate Ethernet referHiPerClockS™ ence clock frequencies and is a member of the HiPerClocks™ family of high performance clock solutions from ICS.

Using a 19.53125MHz or 25MHz, 18pF parallel resonant crystal, the following fr

ICS844003I-01 Features

* Three LVDS outputs on two banks, A Bank with one LVDS pair and B Bank with 2 LVDS output pairs

* Using a 19.53125MHz or 25MHz crystal, the two output banks can be independently set for 625MHz, 312.5MHz, 156.25MHz or 125MHz

* Selectable crystal oscillator interface or LVCMOS

ICS844003I-01_IDT.pdf

Preview of ICS844003I-01 PDF

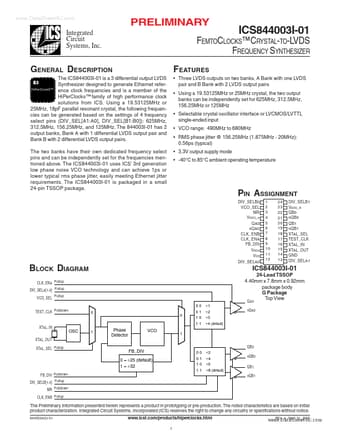

ICS844003I-01 Datasheet Preview Page 2 ICS844003I-01 Datasheet Preview Page 3
