ICS810001-21, FEMTOCLOCKS-TM DUAL VCXO VIDEO PLL

www.DataSheet4U.com PRELIMINARY Integrated Circuit Systems, Inc.ICS810001-21 FEMTOCLOCKS™ DUAL VCXO VIDEO PLL .
The ICS810001-21 is a member of the HiperClockS™ family of high performance clock HiPerClockS™ solutions from ICS.

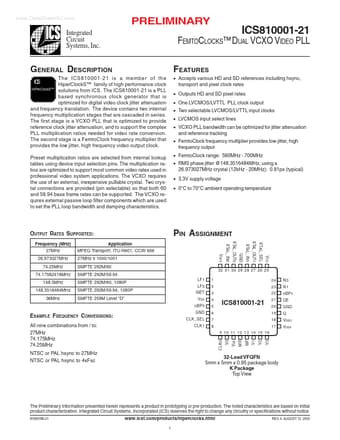

datasheet Preview Page 1 from Datasheet4u.com

ICS810001-21_ICL.pdf

ICS810001-21 Datasheet Preview — Preview of ICS810001-21 PDF

Datasheet Details

Part number:

ICS810001-21

Manufacturer:

ICS

File Size:

268.25 KB

Description:

FEMTOCLOCKS-TM DUAL VCXO VIDEO PLL

Features

* Accepts various HD and SD references including hsync, transport and pixel clock rates
* Outputs HD and SD pixel rates
* One LVCMOS/LVTTL PLL clock output
* Two selectable LVCMOS/LVTTL input clocks
* LVCMOS input select lines
* VCXO PLL bandwidth can

Applications

* The VCXO requires the use of an external, inexpensive pullable crystal. Two crystal connections are provided (pin selectable) so that both 60 and 59.94 base frame rates can be supported. The VCXO requires external passive loop filter components which are used to set the PLL loop bandwidth and dampi
