ICS843S1066 - CRYSTAL-TO-3.3V LVPECL CLOCK SYNTHESIZER

ICS843S1066 Description

CRYSTAL-TO-3.3V LVPECL CLOCK SYNTHESIZER ICS843S1066 General .
The ICS843S1066 is a high frequency clock ICS generator and is a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutions fr.

ICS843S1066 Features

* One differential LVPECL output
* Crystal oscillator interface designed for 18pF, 20MHz parallel resonant crystal
* Cycle-to-Cycle Jitter: 25ps (maximum)
* Period Jitter, RMS: 1.9ps (maximum)
* Output Duty Cycle: 48
* 52%
* Full 3.3V supply mo

📥 Download Datasheet

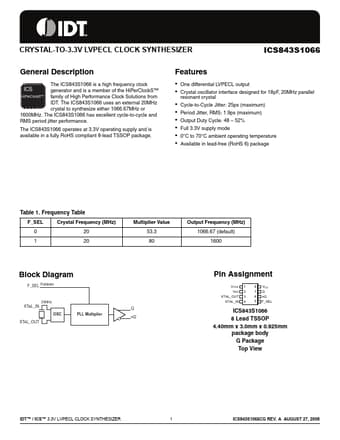

Preview of ICS843S1066 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS843S1066
Manufacturer
IDT
File Size
720.78 KB
Datasheet
ICS843S1066-IDT.pdf
Description
CRYSTAL-TO-3.3V LVPECL CLOCK SYNTHESIZER
