ICS843S2807 CRYSTAL-TOLVPECL/LVDS/LVCMOS CLOCK GENERATOR

ICS843S2807 is a low phase noise Clock Generator ICS and is a member of the HiperClockS™ family of high HiPerClockS™ performance clock solutions from IDT. The device provides five banks of outputs and a reference clock. The banks can be enabled by using a common output enable pin. A 25MHz crystal is.

ICS843S2807 Features

* Five banks of outputs: Bank A: one single-ended (QA0) LVCMOS output at: 133MHz and one (QA1/nQA1) LVPECL output at: 66.67MHz, 100MHz and 125MHz Bank B: two (QB0, QB1) LVCMOS outputs at: 50MHz Bank C: one (QC0/nQC0) differential LVPECL output at: 87.5MHz Bank D: one (QD0/nQD0) differential

ICS843S2807-IDT.pdf

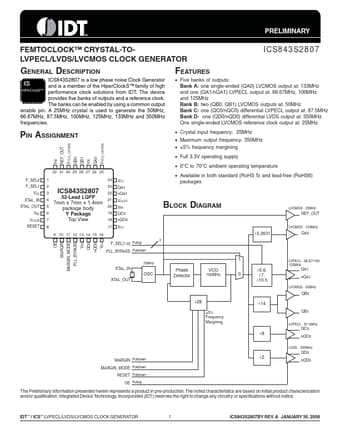

Preview of ICS843S2807 PDF
ICS843S2807 Datasheet Preview Page 2 ICS843S2807 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS843S2807

Manufacturer:

IDT

File Size:

179.29 KB

Description:

Crystal-tolvpecl/lvds/lvcmos clock generator.
