ICS840N202I

NG Universal Frequency Translator

ICS840N202I Features

* Fourth generation FemtoClock® NG technology

* Universal Frequency Translator/Frequency Synthesizer

* Two LVCMOS/LVTTL outputs

* Both outputs may be set to use 2.5V or 3.3V output levels

* Programmable output frequency: 1.0MHz to 250MHz

* Two differen

ICS840N202I General Description

The ICS840N202I is a highly flexible FemtoClock® NG general purpose, low phase noise Frequency Translator / Synthesizer with alarm and monitoring functions suitable for networking and communications applications. It is able to generate any output frequency in the 1MHz - 250MHz range (see Table 3 for.

ICS840N202I Datasheet (478.49 KB)

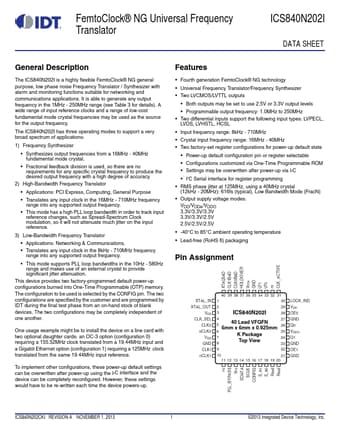

Preview of ICS840N202I PDF

Datasheet Details

Part number:

ICS840N202I

Manufacturer:

IDT

File Size:

478.49 KB

Description:

Ng universal frequency translator.
