ICS87158 Datasheet, Lvpecl-to-hcsl/lvcmos, Integrated Circuit Systems

ICS87158 Features

  • Lvpecl-to-hcsl/lvcmos
  • Six HCSL outputs
  • Two LVCMOS/LVTTL outputs
  • One Differential LVPECL clock input pair
  • PCLK, nPCLK supports the following input types: LVDS, LVPECL,

PDF File Details

Part number:

ICS87158

Manufacturer:

Integrated Circuit Systems

File Size:

282.57kb

Download:

📄 Datasheet

Description:

Lvpecl-to-hcsl/lvcmos. The ICS87158 is a high performance 1-to-6 LVPECL-to-HCSL/LVCMOS Clock Generator HiPerClockS™ and is a member of the HiPerClockS™ fami

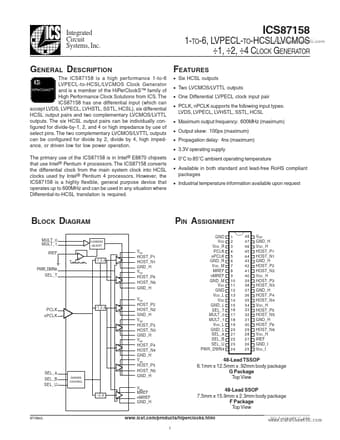

Datasheet Preview: ICS87158 📥 Download PDF (282.57kb)
Page 2 of ICS87158 Page 3 of ICS87158

ICS87158 Application

  • Applications the maximum input voltage for PCLK, nPCLK is VDD + 0.3V. 87158AG www.icst.com/products/hiperclocks.html 4 REV. B JANUARY 17, 2006 I
