Datasheet Details
- Part number
- ICS8741004
- Manufacturer
- Integrated Device Technology
- File Size
- 1.20 MB
- Datasheet
- ICS8741004_IntegratedDeviceTechnology.pdf
- Description
- DIFFERENTIAL-TO-LVDS/0.7V DIFFERENTIAL PCI EXPRESS JITTER ATTENUATOR
ICS8741004 Description

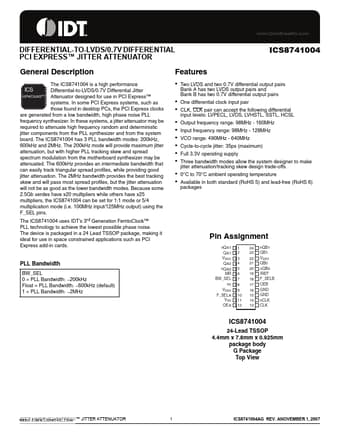

www.DataSheet4U.com DIFFERENTIAL-TO-LVDS/0.7V DIFFERENTIAL PCI EXPRESS™ JITTER ATTENUATOR ICS8741004 General .
The ICS8741004 is a high performance Differential-to-LVDS/0.
ICS8741004 Features
* Two LVDS and two 0.7V differential output pairs Bank A has two LVDS output pairs and Bank B has two 0.7V differential output pairs One differential clock input pair CLK, CLK pair can accept
ICS8741004 Applications
* such as PCI Express add-in cards. Pin Assignment
nQA1 QA1 VDDO QA0 nQA0 MR BW_SEL nc VDDA F_SELA VDD OEA 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 nQB1 QB1 VDDO QB0 nQB0 IREF F_SELB OEB GND GND nCLK CLK
PLL Bandwidth
BW_SEL 0 = PLL Bandwidth: ~200kHz Float = PLL Bandwidth: ~60
