ICS2008B - SMPTE Time Code Receiver/Generator

Product Overview

Integrated Circuit Systems

Part number	ICS2008B
Manufacturer	Integrated Circuit Systems
File Size	285.92 KB
Description	SMPTE Time Code Receiver/Generator
Datasheet	ICS2008B Datasheet

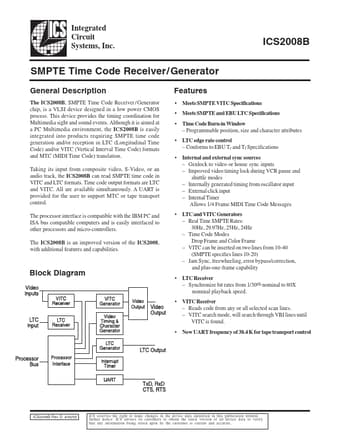

Additional preview pages of the ICS2008B datasheet.

The ICS2008B, SMPTE Time Code Receiver / Generator chip, is a VLSI device designed in a low power CMOS process.

es.
Meets SMPTE VITC Specifications Meets SMPTE and EBU LTC Specifications Time Code Burn-in Window.
Programmable position, size and character attributes LTC edge rate control.
Conforms to EBU Tr and Tf Specifications Internal and external sync sources.
Genlock to video or house sync inputs.
Improved video timing lock during VCR pause and shuttle modes.
Internally generated timing from oscillator input.
