ICS2304NZ-1 - LOW SKEW PCI/PCI-X BUFFER

Product Overview

Renesas

Part number	ICS2304NZ-1
Manufacturer	Renesas
File Size	251.55 KB
Description	LOW SKEW PCI/PCI-X BUFFER
Datasheet	ICS2304NZ-1 Datasheet
Additional preview pages of the ICS2304NZ-1 datasheet.

The ICS2304NZ-1 is a high-performance, low skew, low jitter PCI/PCI-X clock driver.

Packaged in 8-pin TSSOP (4.4 mm body).
Frequency range of 0 to 140 MHz.
Less than 100 ps skew between outputs.
Distribute one clock input to one bank of four outputs.
Operating voltage of 3.3 V ±10%.

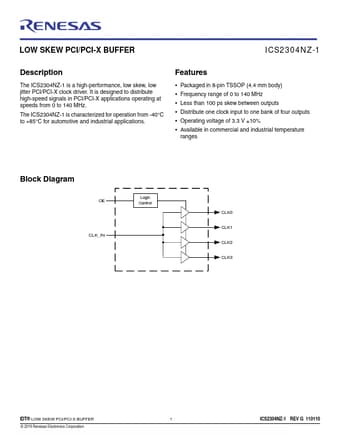

Available in commercial and industrial temperature ranges Block Diagram OE CLK_IN Logic Control CLK0 CLK1 CLK2 CLK3 IDT® LOW SKEW PCI/PCI-X BUFFER 1 ICS2304NZ-1 REV G 110110 ICS2304NZ-1 LOW SKEW PCI/PCI-X BUFFER FAN OUT BUFFER Pin Assig.
