ICS2402 - MULTIPLIER AND ZERO DELAY BUFFER

ICS2402 Description

MULTIPLIER AND ZERO DELAY BUFFER DATASHEET ICS2402 .
The ICS2402 is a high-performance Zero Delay Buffer (ZDB) which integrates IDT’s proprietary analog/digital Phase-Locked Loop (PLL) techniques.

ICS2402 Features

* 8-pin SOIC package
* Pb-free, RoHS compliant
* Absolute jitter ±100 ps
* Propagation Delay of ±600 ps
* Output multiplier of 2X
* Output clock frequency up to 80 MHz
* Can recover degraded inpu

📥 Download Datasheet

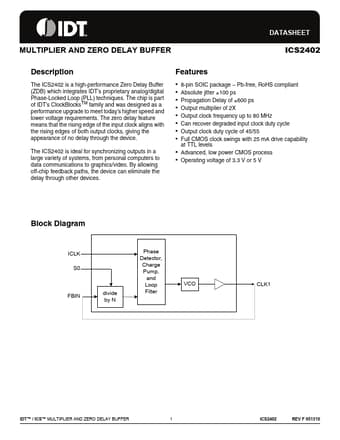

Preview of ICS2402 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS2402
Manufacturer
IDT
File Size
130.74 KB
Datasheet
ICS2402-IDT.pdf
Description
MULTIPLIER AND ZERO DELAY BUFFER
