ICS22002I-01

CRYSTAL-TOLVHSTL FREQUENCY SYNTHESIZER

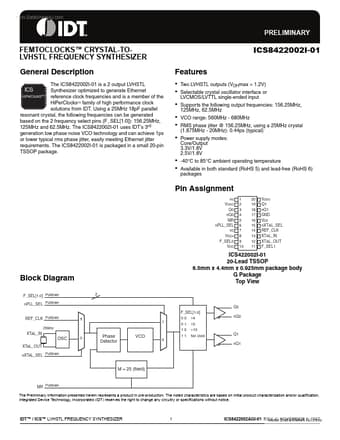

ICS22002I-01 Datasheet (751.04 KB)

Preview of ICS22002I-01 PDF

Datasheet Details

Part number:

ICS22002I-01

Manufacturer:

IDT

File Size:

751.04 KB

Description:

Crystal-tolvhstl frequency synthesizer.

ICS22002I-01 Features

* Two LVHSTL outputs (VOHmax = 1.2V) Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input Supports the following output frequencies: 156.25MHz, 125MHz, 62.5MHz VCO range: 560MHz - 680MHz RMS phase jit

ICS22002I-01 General Description

The ICS8422002I-01 is a 2 output LVHSTL Synthesizer optimized to generate Ethernet HiPerClockS™ reference clock frequencies and is a member of the HiPerClocksTM family of high performance clock solutions from IDT. Using a 25MHz 18pF parallel resonant crystal, the following frequencies can be generat.
