ICS83026I-01 Datasheet, Buffer, Integrated Circuit Systems

ICS83026I-01 Features

• Buffer
• Two LVCMOS / LVTTL outputs
• Differential CLK, nCLK input pair
• CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL,

PDF File Details

Part number:

ICS83026I-01

Manufacturer:

Integrated Circuit Systems

File Size:

279.00kb

Download:

📄 Datasheet

Description:

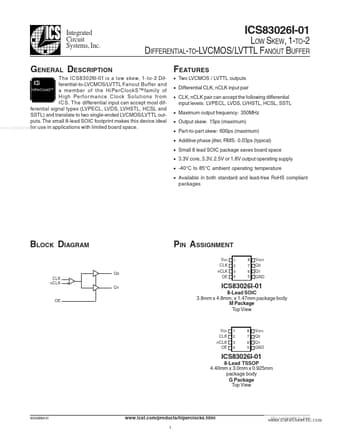

1-to-2 differential-to-lvcmos/lvttl fanout buffer. The ICS83026I-01 is a low skew, 1-to-2 Differential-to-LVCMOS/LVTTL Fanout Buffer and HiPerClockS™ a member of the HiPerClockS ™ fami

ICS83026I-01 Application

• Applications with limited board space. www.DataSheet4U.com IC S BLOCK DIAGRAM PIN ASSIGNMENT VDD CLK nCLK OE 1 2 3 4 8 7 6 5 VDDO Q0 Q1 GND Q0 C
