ICS8343I, LOW SKEW 1-TO-16 FANOUT BUFFER

Integrated Circuit Systems, Inc.ICS8343I LOW SKEW 1-TO-16 FANOUT BUFFER .
The ICS8343I is a low skew, 1-to-16 Fanout ,&6 Buffer and a member of the HiPerClockS™ family HiPerClockS™ of High Performance Clock Solutions from IC.

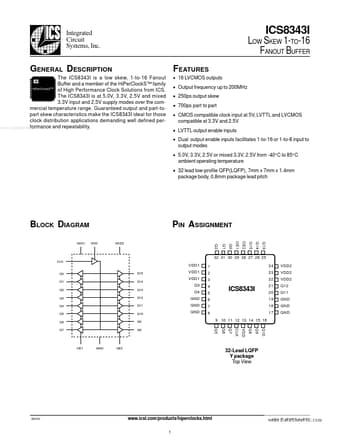

datasheet Preview Page 1 from Datasheet4u.com

ICS8343I_IntegratedCircuitSystems.pdf

ICS8343I Datasheet Preview — Preview of ICS8343I PDF

Datasheet Details

Part number:

ICS8343I

Manufacturer:

Integrated Circuit Systems

File Size:

109.78 KB

Description:

LOW SKEW 1-TO-16 FANOUT BUFFER

Features

* 16 LVCMOS outputs
* Output frequency up to 200MHz
* 250ps output skew
* 700ps part to part
* CMOS compatible clock input at 5V, LVTTL and LVCMOS compatible at 3.3V and 2.5V
* LVTTL output enable inputs
* Dual output enable inputs facilit

Applications

* demanding well defined performance and repeatability. www. DataSheet4U. com BLOCK DIAGRAM VDD1 VDD VDD2 PIN ASSIGNMENT OE1 OE2 Q15 Q14 Q13 Q2 Q1 Q0 32 31 30 29 28 27 26 25 CLK VDD1 Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q15 Q14 Q13 Q12 Q11 Q10 Q9 Q8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Q5 Q6 Q7 CLK VDD Q8 Q9
