ICS8343 Datasheet, Buffer, Integrated Circuit Systems

ICS8343 Features

  • Buffer
  • 16 LVCMOS outputs
  • Output frequency up to 200MHz
  • 250ps output skew
  • 700ps part to part
  • CMOS compatible clock input at 5V, LVTTL and LVCMO

PDF File Details

Part number:

ICS8343

Manufacturer:

Integrated Circuit Systems

File Size:

186.45kb

Download:

📄 Datasheet

Description:

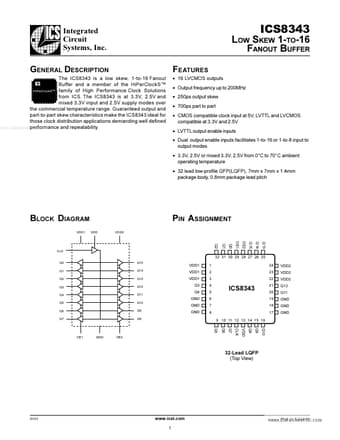

Low skew 1-to-16 fanout buffer. ,&6 BLOCK DIAGRAM VDD1 VDD VDD2 PIN A SSIGNMENT OE1 OE2 Q15 Q14 Q13 Q2 Q1 Q0 CLK 32 31 30 29 28 27 26 25 Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7

Datasheet Preview: ICS8343 📥 Download PDF (186.45kb)
Page 2 of ICS8343 Page 3 of ICS8343

ICS8343 Application

  • Applications demanding well defined performance and repeatability. www.DataSheet4U.com GENERAL DESCRIPTION ,&6 BLOCK DIAGRAM VDD1 VDD VDD2 PIN A
