ICS932S200 - Frequency Timing Generator

Product Overview

Integrated Circuit Systems

Part number	ICS932S200
Manufacturer	Integrated Circuit Systems
File Size	98.74 KB
Description	Frequency Timing Generator
Datasheet	ICS932S200 Datasheet

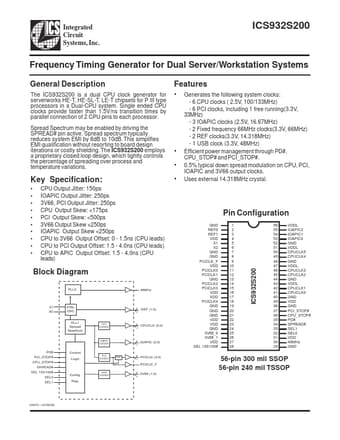

Additional preview pages of the ICS932S200 datasheet.

The ICS932S200 is a dual CPU clock generator for serverworks HE-T, HE-SL-T, LE-T chipsets for P III type processors in a Dual-CPU system.

Generates the following system clocks: - 6 CPU clocks ( 2.5V, 100/133MHz) - 6 PCI clocks, including 1 free running(3.3V, 33MHz) - 3 IOAPIC clocks (2.5V, 16.67MHz) - 2 Fixed frequency 66MHz clocks(3.3V, 66MHz) - 2 REF clocks(3.3V, 14.318MHz) - 1 USB clock (3.3V, 48MHz).
Efficient power management through PD#, CPU_STOP# and PCI_STOP#.
0.5% typical down spread modulation on CPU, PCI, IOAPIC and 3V66 output clocks.
Uses external 14.318MHz crystal. Pin Configur.
