ICS932S422C - PCIe Gen 2 main Clock

Product Overview

Integrated Circuit Systems

📥 Download Datasheet

ICS932S422C PCIe Gen 2 main Clock by Integrated Circuit Systems - Datasheet Preview — Datasheet preview – ICS932S422C

Datasheet Details

Part number	ICS932S422C
Manufacturer	Integrated Circuit Systems
File Size	189.72 KB
Description	PCIe Gen 2 main Clock
Datasheet	ICS932S422C Datasheet

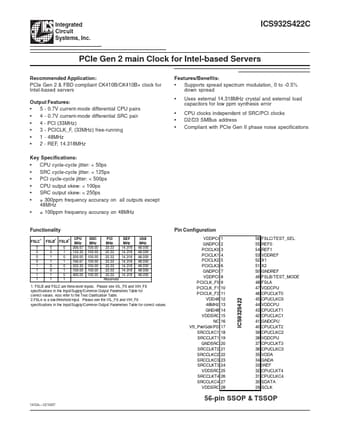

Additional preview pages of the ICS932S422C datasheet.

Product details

Features

5 - 0.7V current-mode differential CPU pairs.
4 - 0.7V current-mode differential SRC pair.
4 - PCI (33MHz).
3 - PCICLK_F, (33MHz) free-running.
1 - 48MHz.
2 - REF, 14.318MHz Key Specifications:.
CPU cycle-cycle jitter: < 50ps.
SRC cycle-cycle jitter: < 125ps.
PCI cycle-cycle jitter: < 500ps.
CPU output skew: < 100ps.
SRC output skew: < 250ps.
± 300ppm frequency accuracy on all outputs ex.
