ICS932S825 - Low Power Clock Chip

Product Overview

Integrated Circuit Systems

📥 Download Datasheet

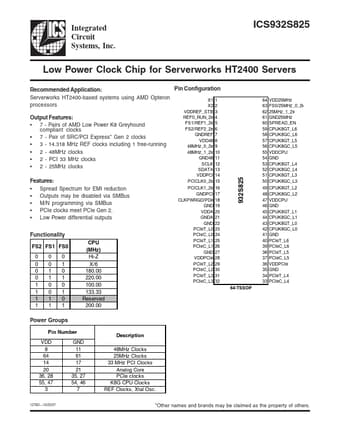

ICS932S825 Low Power Clock Chip by Integrated Circuit Systems - Datasheet Preview — Datasheet preview – ICS932S825

Datasheet Details

Part number	ICS932S825
Manufacturer	Integrated Circuit Systems
File Size	227.66 KB
Description	Low Power Clock Chip
Datasheet	ICS932S825 Datasheet
Additional preview pages of the ICS932S825 datasheet.

Product details

Features

7 - Pairs of AMD Low Power K8 Greyhound compliant clocks.
7 - Pair of SRC/PCI Express.
Gen 2 clocks.
3 - 14.318 MHz REF clocks including 1 free-running.
2 - 48MHz clocks.
2 - PCI 33 MHz clocks.
2 - 25MHz clocks Features:.
Spread Spectrum for EMI reduction.
Outputs may be disabled via SMBus.
M/N programming via SMBus.
PCIe clocks meet PCIe Gen 2.
Low Power differential outputs Functionality.
