ICS93732 - Low Cost DDR Phase Lock Loop Zero Delay Buffer

Integrated Circuit Systems

ICS93732 Description

Integrated Circuit Systems, Inc.ICS9373 2 Low Cost DDR Phase Lock Loop Zero Delay Buffer Recommended Application: DDR Zero Delay Clock Buffer Prod.
Features:. Low skew, low jitter PLL clock driver. Max frequency supported = 266MHz (DDR 533). I2C for functional and output.

ICS93732 Features

* Low skew, low jitter PLL clock driver
* Max frequency supported = 266MHz (DDR 533)
* I2C for functional and output control
* Feedback pins for input to output synchronization
* Spread Spectrum tolerant inputs
* 3.3V tolerant CLK_INT input Switching

📥 Download Datasheet

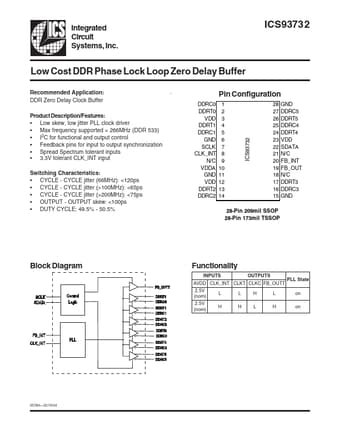

ICS93732 Datasheet Preview — Preview of ICS93732 PDF

Datasheet Details

Part number: ICS93732
Manufacturer: Integrated Circuit Systems
File Size: 475.15 KB
Datasheet: ICS93732-IntegratedCircuitSystems.pdf
Description: Low Cost DDR Phase Lock Loop Zero Delay Buffer
