MK1711-01 Datasheet, Clock Source, Integrated Circuit Systems

200 mhz selectable clock source

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Black Lion Audio	MK1711-01	MK1711-01S	200 MHZ, OTHER CLOCK GENERATOR, PDSO16	Quest Components	82	57 units	$0.7	🛒 Buy Now

📥 Download PDF (61.28 KB)

Rating: 1 ★ (3 votes)

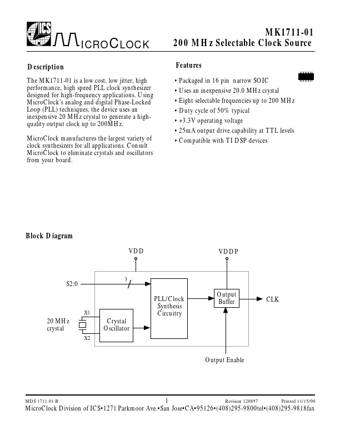

MK1711-01 Datasheet Preview Page 1 — Preview of MK1711-01 Datasheet

PDF File Details

Part number:

MK1711-01

Manufacturer:

Integrated Circuit Systems

File Size:

61.28 KB

Download:

📄 Download the MK1711-01 Datasheet PDF

Description:

200 mhz selectable clock source.
The MK1711-01 is a low cost, low jitter, high performance, high speed PLL clock synthesizer designed for high-frequency applications.
Using MicroClock’s analog and digital Phase-Locked Loop (PLL) tech.

✔ MK1711-01 Features

Packaged in 16 pin narrow SOIC
Uses an inexpensive 20.0 MHz crystal
Eight selectable frequencies up to 200 MHz
Duty cycle of 50% typical
+3.3V operating voltage

✔ MK1711-01 Application

Using MicroClock’s analog and digital Phase-Locked Loop (PLL) techniques, the device uses an inexpensive 20
