IDT74FCT2541T

FAST CMOS OCTAL BUFFER/LINE DRIVERS

IDT74FCT2541T Features

* Common features:

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18 specifications

* Product available

IDT74FCT2541T General Description

The IDT octal buffer/line drivers are built using an advanced dual metal CMOS technology. The FCT240T/FCT2240T and FCT244T/FCT2244T are designed to be employed as memory and address drivers, clock drivers and bus-oriented transmitter/receivers which provide improved board density. The FCT540T and F.

IDT74FCT2541T Datasheet (185.31 KB)

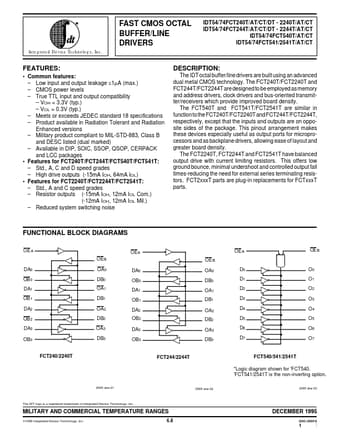

Preview of IDT74FCT2541T PDF

Datasheet Details

Part number:

IDT74FCT2541T

Manufacturer:

Integrated Device Tech

File Size:

185.31 KB

Description:

Fast cmos octal buffer/line drivers.
IDT54/74FCT240/244T/AT/CT/DT - 2240/2244T/AT/CT, IDT54/74FCT540/541/2541T/AT/CT FAST CMOS OCTAL BUFFER/LINE DRIVER MILITARY AND COMMERCIAL TEMPERATURE.
