IDT74FCT2543T

FAST CMOS OCTAL LATCHED TRANSCEIVER

IDT74FCT2543T Features

* Common features:

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18 specifications

* Product available

IDT74FCT2543T General Description

The FCT543T/FCT2543T is a non-inverting octal transceiver built using an advanced dual metal CMOS technology. This device contains two sets of eight D-type latches with separate input and output controls for each set. For data flow from A to B, for example, the A-to-B Enable (CEAB) input must be LO.

IDT74FCT2543T Datasheet (119.65 KB)

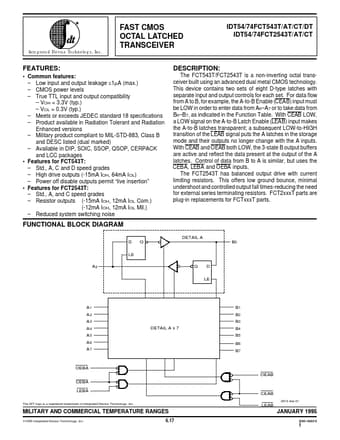

Preview of IDT74FCT2543T PDF

Datasheet Details

Part number:

IDT74FCT2543T

Manufacturer:

Integrated Device Tech

File Size:

119.65 KB

Description:

Fast cmos octal latched transceiver.
