IDT54FCT162652AT Datasheet - Integrated Device Technology

IDT54FCT162652AT FAST CMOS 16-BIT BUS TRANSCEIVER/ REGISTERS

The FCT16652T/AT/CT/ET and FCT162652T/AT/CT/ET 16-bit registered transceivers are built using advanced dual metal CMOS technology. These high-speed, low-power de- vices are organized as two independent 8-bit bus transceivers with 3-state D-type registers. For example, the xOEAB and xOEBA signals c.

IDT54FCT162652AT Features

* Common features:

* 0.5 MICRON CMOS Technology

* High-speed, low-power CMOS replacement for ABT functions

* Typical tSK(o) (Output Skew) < 250ps

* Low input and output leakage ≤1µ A (max.)

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using mach

IDT54FCT162652AT_IntegratedDeviceTechnology.pdf

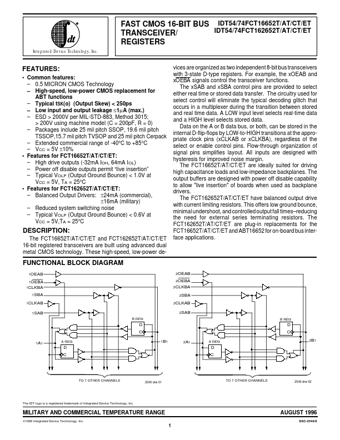

Preview of IDT54FCT162652AT PDF
IDT54FCT162652AT Datasheet Preview Page 2 IDT54FCT162652AT Datasheet Preview Page 3

Datasheet Details

Part number:

IDT54FCT162652AT

Manufacturer:

Integrated Device Technology

File Size:

180.75 KB

Description:

Fast cmos 16-bit bus transceiver/ registers.
