IDT54FCT162244T - FAST CMOS 16-BIT BUFFER/LINE DRIVER

Datasheet Summary

Description

The 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation.

These devices have a flow through pin organization, and shrink packaging to simplify board layout.

All inputs are designed with hysteresis for improved noise margin.

Features

  • FCT16244T/AT/CT/ET:.
  • High drive outputs (-32mA IOH, 64mA IOL).
  • Power off disable outputs permit “live insertion”.
  • Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
  • Features for FCT162244T/AT/CT/ET:.
  • Balanced Output Drivers: ±24mA (commercial), ±16mA (military).
  • Reduced system switching noise.
  • Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C.
  • Features for FCT166244T/AT/CT:.
  • Light Dri.

📥 Download Datasheet

Datasheet preview – IDT54FCT162244T

Datasheet Details

Part number IDT54FCT162244T
Manufacturer Integrated Device
File Size 64.87 KB
Description FAST CMOS 16-BIT BUFFER/LINE DRIVER
Datasheet download datasheet IDT54FCT162244T Datasheet
Additional preview pages of the IDT54FCT162244T datasheet.

📁 Similar Datasheet

Other Datasheets by Integrated Device

Full PDF Text Transcription

Click to expand full text

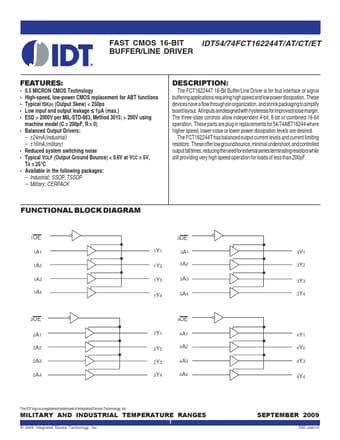

FAST CMOS 16-BIT BUFFER/LINE DRIVER Integrated Device Technology, Inc. IDT54/74FCT16244T/AT/CT/ET IDT54/74FCT162244T/AT/CT/ET IDT54/74FCT166244T/AT/CT IDT54/74FCT162H244T/AT/CT/ET FEATURES: • Common features: – 0.5 MICRON CMOS Technology – High-speed, low-power CMOS replacement for ABT functions – Typical tSK(o) (Output Skew) < 250ps – Low input and output leakage ≤ 1µ A (max.) – ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) – Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack – Extended commercial range of -40°C to +85°C • Features for FCT16244T/AT/CT/ET: – High drive outputs (-32mA IOH, 64mA IOL) – Power off disable outputs permit “live insertion” – Typical VOLP (Output Ground Bounce) < 1.
