IDT54FCT162244CT Datasheet - Integrated Device

IDT54FCT162244CT FAST CMOS 16-BIT BUFFER/LINE DRIVER

The 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation. These devices have a flow through pin organization, and shrink packaging to simplify board layout. All inputs are designed with hysteresis for improved noise margin. T.

IDT54FCT162244CT Features

* Common features:

* 0.5 MICRON CMOS Technology

* High-speed, low-power CMOS replacement for ABT functions

* Typical tSK(o) (Output Skew) < 250ps

* Low input and output leakage ≤ 1µ A (max.)

* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using mac

IDT54FCT162244CT_IntegratedDeviceTechnology.pdf

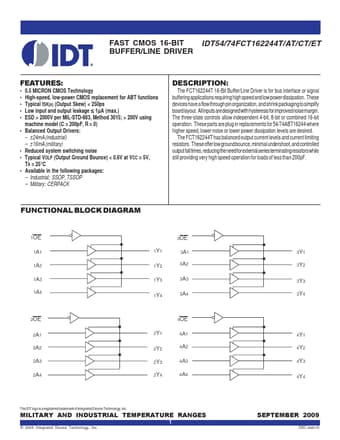

Preview of IDT54FCT162244CT PDF
IDT54FCT162244CT Datasheet Preview Page 2 IDT54FCT162244CT Datasheet Preview Page 3

Datasheet Details

Part number:

IDT54FCT162244CT

Manufacturer:

Integrated Device

File Size:

64.87 KB

Description:

Fast cmos 16-bit buffer/line driver.
