IDT54FCT162652CT - FAST CMOS 16-BIT BUS TRANSCEIVER/ REGISTERS

Integrated Device Technology

📥 Download Datasheet

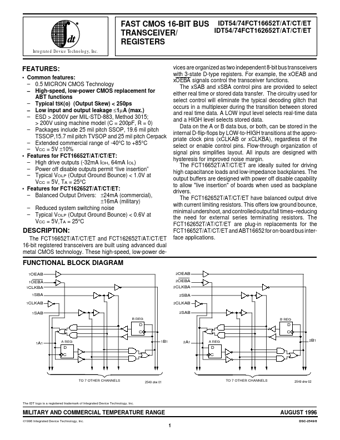

IDT54FCT162652CT Datasheet Preview — Preview of IDT54FCT162652CT PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT54FCT162652CT
Manufacturer	Integrated Device Technology
File Size	180.75 KB
Description	FAST CMOS 16-BIT BUS TRANSCEIVER/ REGISTERS
Datasheet	IDT54FCT162652CT_IntegratedDeviceTechnology.pdf

IDT54FCT162652CT Product details

Description

The FCT16652T/AT/CT/ET and FCT162652T/AT/CT/ET 16-bit registered transceivers are built using advanced dual metal CMOS technology.

Features

FCT16652T/AT/CT/ET:.
High drive outputs (-32mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
Features for FCT162652T/AT/CT/ET:.
Balanced Output Drivers: ±24mA (commercial), ±16mA (military).
Reduced system switching noise.
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C.
