IDT54FCT162701AT

FAST CMOS 18-BIT R/W BUFFER

IDT54FCT162701AT Features

* 0.5 MICRON CMOS Technology Typical tSK(o) (Output Skew) < 250ps Low input and output leakage ≤1µ A (max.) ESD > 2000V per MIL-STD-883, Method 3015; > 200V usin

IDT54FCT162701AT General Description

The FCT162701T/AT is an 18-bit Read/Write buffer with a four deep FIFO and a read-back latch. It can be used as a read/write buffer between a CPU and memory or to interface a high-speed bus and a slow peripheral. The Ato-B (write) path has a four deep FIFO for pipelined operations. The FIFO can be .

IDT54FCT162701AT Datasheet (112.56 KB)

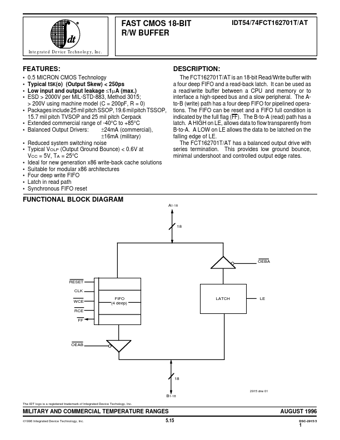

Preview of IDT54FCT162701AT PDF

Datasheet Details

Part number:

IDT54FCT162701AT

Manufacturer:

Integrated Device Technology

File Size:

112.56 KB

Description:

Fast cmos 18-bit r/w buffer.
