IDT6167SA, CMOS STATIC RAM

CMOS STATIC RAM 16K (16K x 1-BIT) Integrated Device Technology, Inc.IDT6167SA IDT6167LA .
The lDT6167 is a 16,384-bit high-speed static RAM organized as 16K x 1.

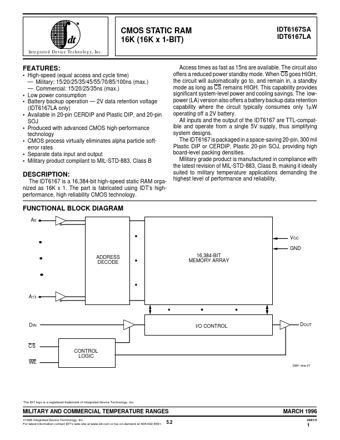

datasheet Preview Page 1 from Datasheet4u.com

IDT6167SA_IntegratedDeviceTechnology.pdf

IDT6167SA Datasheet Preview — Preview of IDT6167SA PDF

Datasheet Details

Part number:

IDT6167SA

Manufacturer:

Integrated Device Technology

File Size:

63.43 KB

Description:

CMOS STATIC RAM

Features

* High-speed (equal access and cycle time)
* Military: 15/20/25/35/45/55/70/85/100ns (max. )
* Commercial: 15/20/25/35ns (max. )
* Low power consumption
* Battery backup operation
* 2V data retention voltage (IDT6167LA only)
* Available in 20-pi

Applications

* demanding the highest level of performance and reliability. FUNCTIONAL BLOCK DIAGRAM A0 VCC GND ADDRESS DECODE 16,384-BIT MEMORY ARRAY A13 DIN I/O CONTROL DOUT CS WE CONTROL LOGIC 2981 drw 01 The IDT logo is a registered trademark of Integrated Device Technology, Inc. MILITARY AND COMMERCI
