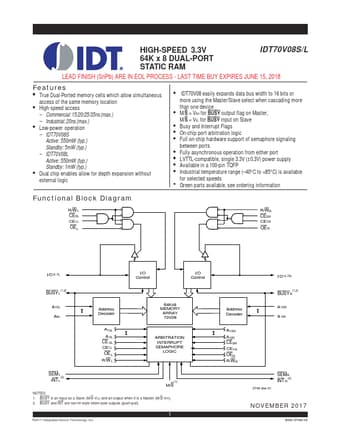

IDT70V08S, IDT70V08 - HIGH-SPEED 64K x 8 DUAL-PORT STATIC RAM

Integrated Device Technology

Datasheet Details

Part number: IDT70V08S, IDT70V08
Manufacturer: Integrated Device Technology
File Size: 247.65 KB
Datasheet: IDT70V08_IntegratedDeviceTechnology.pdf
Description: HIGH-SPEED 64K x 8 DUAL-PORT STATIC RAM
Note: This datasheet PDF includes multiple part numbers: IDT70V08S, IDT70V08.
Please refer to the document for exact specifications by model.

x True Dual-Ported memory cells which allow simultaneous access of the same memory location x High-speed access.
Commercial: 15/20/25/35ns (max. ) x Low-power operation.
IDT70V08S Active: 550mW (typ. ) Standby: 5mW (typ. ).
IDT70V08L Active: 550mW (typ. ) Standby: 1mW (typ. ) x Dual chip enables allow for depth expansion without external logic x IDT70V08 easily expands data bus width to 16 bits or more using the Master/Slave select when cascading more than one device x M/S.
