IDT72T4088 - HIGH-SPEED TeraSync DDR/SDR FIFO

This page provides the datasheet information for the IDT72T4088, a member of the IDT72T40108 HIGH-SPEED TeraSync DDR/SDR FIFO family.

Description

The IDT72T4088/72T4098/72T40108/72T40118 are exceptionally deep, extremely high speed, CMOS First-In-First-Out (FIFO) memories with the ability to read and write data on both rising and falling edges of clock.

Features

Choose among the following memory organizations: IDT72T4088  16,384 x 40 IDT72T4098  32,768 x 40 IDT72T40108  65,536 x 40 IDT72T40118  131,072 x 40 Up to 250MHz Operation of Clocks - 4ns read/write cycle time, 3.2ns access time Users selectable input port to output port data rates, 500Mb/s Data Rate -DDR to DDR -DDR to SDR -SDR to DDR -SDR to SDR User selectable HSTL or LVTTL I/O.

Datasheet Details

Part number	IDT72T4088
Manufacturer	Integrated Device Technology
File Size	517.19 KB
Description	HIGH-SPEED TeraSync DDR/SDR FIFO
Datasheet	IDT72T4088 Datasheet

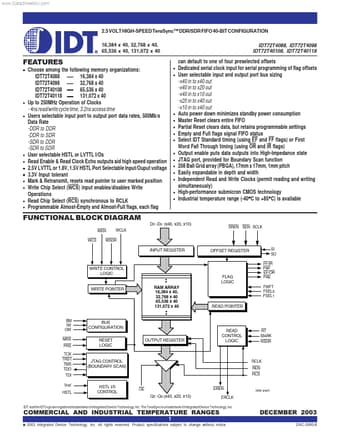

Additional preview pages of the IDT72T4088 datasheet.

📁 Similar Datasheet

IDT72T18105 - 2.5 VOLT HIGH-SPEED FIFO (Renesas)

IDT72T18105 - HIGH-SPEED TeraSync FIFO (IDT)

IDT72T18115 - 2.5 VOLT HIGH-SPEED FIFO (Renesas)

IDT72T18115 - HIGH-SPEED TeraSync FIFO (IDT)

IDT72T18125 - 2.5 VOLT HIGH-SPEED FIFO (Renesas)

IDT72T18125 - HIGH-SPEED TeraSync FIFO (IDT)

IDT72T1845 - HIGH-SPEED TeraSync FIFO (IDT)

IDT72T1845 - 2.5 VOLT HIGH-SPEED FIFO (Renesas)

IDT72T1855 - HIGH-SPEED TeraSync FIFO (IDT)

IDT72T1855 - 2.5 VOLT HIGH-SPEED FIFO (Renesas)

Full PDF Text Transcription

Click to expand full text

www.DataSheet4U.com 2.5 VOLT HIGH-SPEED TeraSync™ DDR/SDR FIFO 40-BIT CONFIGURATION 16,384 x 40, 32,768 x 40, 65,536 x 40, 131,072 x 40 IDT72T4088, IDT72T4098 IDT72T40108, IDT72T40118 • • FEATURES • • • • • • • • • • • Choose among the following memory organizations: IDT72T4088  16,384 x 40 IDT72T4098  32,768 x 40 IDT72T40108  65,536 x 40 IDT72T40118  131,072 x 40 Up to 250MHz Operation of Clocks - 4ns read/write cycle time, 3.2ns access time Users selectable input port to output port data rates, 500Mb/s Data Rate -DDR to DDR -DDR to SDR -SDR to DDR -SDR to SDR User selectable HSTL or LVTTL I/Os Read Enable & Read Clock Echo outputs aid high speed operation 2.5V LVTTL or 1.8V, 1.5V HSTL Port Selectable Input/Ouput voltage 3.
