IDT72V201 - FIFO memories

Product Overview

Integrated Device Technology

Datasheet Details

Part number	IDT72V201
Manufacturer	Integrated Device Technology
File Size	107.05 KB
Description	FIFO memories
Datasheet	IDT72V201 Datasheet

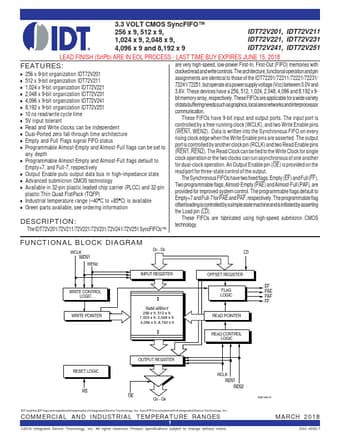

Additional preview pages of the IDT72V201 datasheet.

Product details

Description

The IDT72V201/72V211/72V221/72V231/72V241/72V251 SyncFIFOs™ are very high-speed, low-power First-In, First-Out (FIFO) memories with clocked read and write controls.The architecture, functional operation and pin assignments are identical to those of the IDT72201/72211/72221/72231/ 72241/72251, but operate at a power supply voltage (Vcc) between 3.0V and 3.6V.These devices have a 256, 512, 1,024, 2,048, 4,096 and 8,192 x 9-bit memory array, respectively.These FIFOs are applicable for a wide v

Features

256 x 9-bit organization IDT72V201 512 x 9-bit organization IDT72V211 1,024 x 9-bit organization IDT72V221 2,048 x 9-bit organization IDT72V231 4,096 x 9-bit organization IDT72V241 8,192 x 9-bit organization IDT72V251 10 ns read/write cycle time 5V input tolerant Read and Write clocks can be independent Dual-Ported zero fall-t.
