IDT7M9514, IDT7M9510 Datasheet - Integrated Device Technology

IDT7M9514 PCI MEZZANINE CARD

The IDT7M9510/7M9514 is a Single Board Computer utilizing IDT's 79RV4640/79RC64V474 MIPS processor. This CPU Mezzanine Card is designed for use in applications where low profile, parallel board to board mounting is required. The 7M9510/7M9514 consists of an IDT79RV4640 / IDT79RC64V474 processor bas.

IDT7M9514 Features

* PCI Mezzanine Card (PMC) (IEEE 1386) form factor

* 7M9510 High performance IDT79RV4640 MIPS Processor

* 100Mhz, 150Mhz, 180Mhz, 200MHz CPU speeds supported

* 50MHz maximum CPU bus frequency

* 33MHz maximum PCI bus frequency

* 7M9514 High performance

IDT7M9510_IntegratedDeviceTechnology.pdf

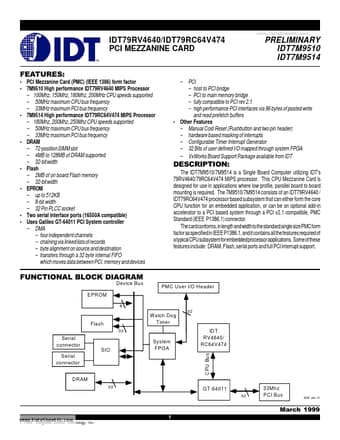

IDT7M9514 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT7M9514, IDT7M9510. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT7M9514, IDT7M9510

Manufacturer:

Integrated Device Technology

File Size:

86.22 KB

Description:

Pci mezzanine card.

Note:

This datasheet PDF includes multiple part numbers: IDT7M9514, IDT7M9510.
Please refer to the document for exact specifications by model.
