IDT29FCT53BT - FAST CMOS OCTAL REGISTERED TRANSCEIVERS

Integrated Device

The IDT29FCT53BT by Integrated Device is a FAST CMOS OCTAL REGISTERED TRANSCEIVERS. Below is the official datasheet preview.

📥 Download Datasheet

IDT29FCT53BT FAST CMOS OCTAL REGISTERED TRANSCEIVERS by Integrated Device - Datasheet Preview — Official preview page of the IDT29FCT53BT FAST CMOS OCTAL REGISTERED TRANSCEIVERS datasheet (Integrated Device).

Datasheet Details

Part number	IDT29FCT53BT
Manufacturer	Integrated Device
File Size	125.65 KB
Description	FAST CMOS OCTAL REGISTERED TRANSCEIVERS
Datasheet	IDT29FCT53BT_IntegratedDeviceTechnology.pdf

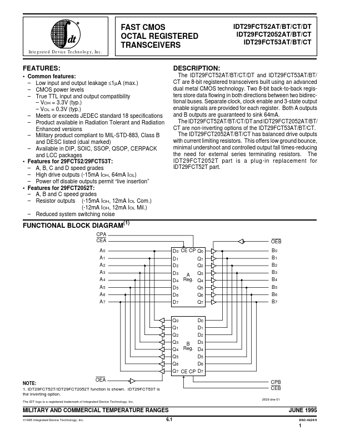

Additional preview pages of the IDT29FCT53BT datasheet.

IDT29FCT53BT Product details

Description

The IDT29FCT52AT/BT/CT/DT and IDT29FCT53AT/BT/ CT are 8-bit registered transceivers built using an advanced dual metal CMOS technology.

Features

or 29FCT52/29FCT53T:.
A, B, C and D speed grades.
High drive outputs (-15mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Features for 29FCT2052T:.
A, B and C speed grades.
Resistor outputs (-15mA IOH, 12mA IOL Com. ) (-12mA IOH, 12mA IOL Mil. ).
Reduced system switching noise.
