IDT29FCT53C - FAST CMOS OCTAL REGISTERED TRANSCEIVERS

Integrated Device

The IDT29FCT53C by Integrated Device is a FAST CMOS OCTAL REGISTERED TRANSCEIVERS. Below is the official datasheet preview.

📥 Download Datasheet

IDT29FCT53C FAST CMOS OCTAL REGISTERED TRANSCEIVERS by Integrated Device - Datasheet Preview — Official preview page of the IDT29FCT53C FAST CMOS OCTAL REGISTERED TRANSCEIVERS datasheet (Integrated Device).

Datasheet Details

Part number	IDT29FCT53C
Manufacturer	Integrated Device
File Size	62.76 KB
Description	FAST CMOS OCTAL REGISTERED TRANSCEIVERS
Datasheet	IDT29FCT53C_IntegratedDeviceTechnology.pdf

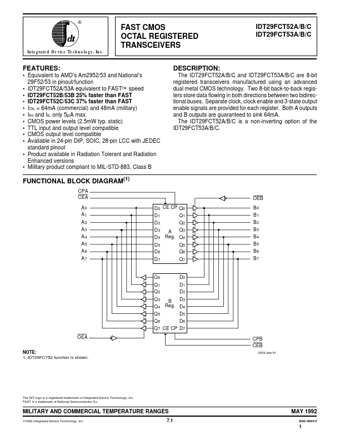

Additional preview pages of the IDT29FCT53C datasheet.

IDT29FCT53C Product details

Description

IDT29FCT52A/B/C IDT29FCT53A/B/C Integrated Device Technology, Inc.

Features

Equivalent to AMD’s Am2952/53 and National’s 29F52/53 in pinout/function.
IDT29FCT52A/53A equivalent to FAST™ speed.
IDT29FCT52B/53B 25% faster than FAST.
IDT29FCT52C/53C 37% faster than FAST.
IOL = 64mA (commercial) and 48mA (military).
IIH and IIL only 5µA max.
CMOS power levels (2.5mW typ. static).
TTL input and output level compatible.
CMOS output level compatible.
Available in 24-pin DIP, SOIC, 28-p.
