IS43R16800CC

128Mb DDR Synchronous DRAM

IS43R16800CC Features

* Vdd =Vddq = 2.5V+0.2V (-5, -6, -75)

* Double data rate architecture; two data transfers per clock cycle.

* Bidirectional , data strobe (DQS) is transmitted/ received with data

* Differential clock input (CLK and /CLK)

* DLL aligns DQ and DQS transition

IS43R16800CC General Description

IS43R16800CC is a 4-bank x 2,097,152-word x 16bit double data rate synchronous DRAM , with SSTL_2 interface. All control and address signals are referenced to the rising edge of CLK. Input data is registered on both edges of data strobe, and output data and data strobe are referenced on both edges .

IS43R16800CC Datasheet (611.71 KB)

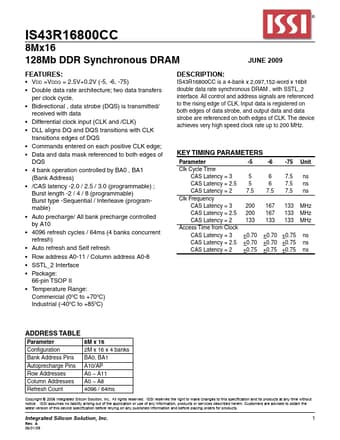

Preview of IS43R16800CC PDF

Datasheet Details

Part number:

IS43R16800CC

Manufacturer:

Integrated Silicon Solution

File Size:

611.71 KB

Description:

128mb ddr synchronous dram.
