LS80C58, LS80C52 - (LS80C5x) CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LS80C58, LS80C52. Please refer to the document for exact specifications by model.

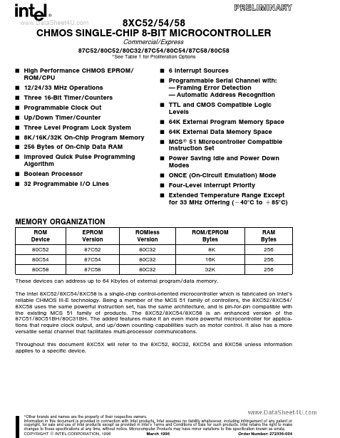

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LS80C58, LS80C52
Manufacturer Intel Corporation
File Size 315.52 KB
Description (LS80C5x) CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER
Datasheet download datasheet LS80C52_IntelCorporation.pdf
Note This datasheet PDF includes multiple part numbers: LS80C58, LS80C52.
Please refer to the document for exact specifications by model.

LS80C58 Product details

Description

VCC Supply voltage VSS Circuit ground VSS1 Secondary ground (not on DIP) Provided to reduce ground bounce and improve power supply by-passing NOTE This pin is not a substitute for the VSS pin (pin 22) (Connection not necessary for proper operation ) Port 0 Port 0 is an 8-bit open drain bidirectional I O port As an output port each pin can sink several LS TTL inputs Port 0 pins that have 1’s written to them float and in that state can be used as high-impedance inputs Port 0 is also the multiplex

Features
