LS8292 Datasheet, Controller, LSI

✔ LS8292 Features

Controls Bipolar and Unipolar stepper motors Step modes: Full, 1/2, 1/4, 1/8, 1/16 and 1/32 PWM outputs for external H-bridge drivers Precision DAC reference for PWM sen

PDF File Details

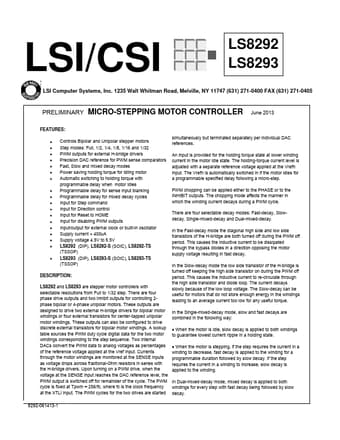

LSI manufacturer logo

Part number:

LS8292

Manufacturer:

LSI

File Size:

831.84kb

Download:

📄 Datasheet

Description:

Micro-stepping motor controller. LS8292 and LS8293 are stepper motor controllers with selectable resolutions from Full to 1/32 step. There are four phase drive outpu

📥 Download PDF (831.84kb)
