LS8293, LS8292 - MICRO-STEPPING MOTOR CONTROLLER

LSI

Datasheet Details

Part number	LS8293, LS8292
Manufacturer	LSI
File Size	831.84 KB
Description	MICRO-STEPPING MOTOR CONTROLLER
Datasheet	LS8292-LSI.pdf
Note	This datasheet PDF includes multiple part numbers: LS8293, LS8292. Please refer to the document for exact specifications by model.

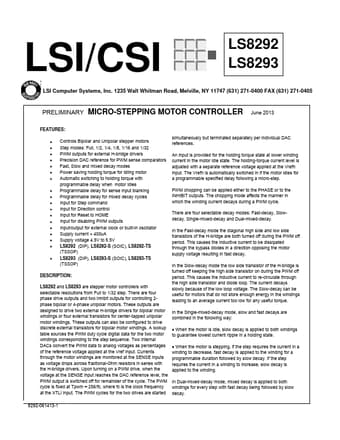

LS8292 and LS8293 are stepper motor controllers with selectable resolutions from Full to 1/32 step.

Controls Bipolar and Unipolar stepper motors Step modes: Full, 1/2, 1/4, 1/8, 1/16 and 1/32 PWM outputs for external H-bridge drivers Precision DAC reference for PWM sense comparators Fast, Slow and mixed decay modes Power saving holding torque for idling motor Automatic switching to holding torque with programmable delay when motor idles Programmable delay for sense input blanking Programmable delay for mixed decay cycles Input for Step command Input for Direction control Input for Reset to HO.
