LS8297 STEPPER MOTOR CONTROLLER

The LS8297 Stepper Motor Controller generates four phase drive signal outputs for controlling two phase Bipolar and four phase Unipolar motors. The outputs are used to drive two H-bridges for the two motor windings in the Bipolar motor or the four driver transistors for the two center- tapped windi.

LS8297 Features

* Controls Bipolar and Unipolar Motors

* Cost-effective, low current, pin compatible replacement for L297

* Torque ripple compensated half-steps - LS8297CT

* Half and full step modes

* Normal/wave drive

* Direction control

* Reset input

LS8297 Datasheet (279.73 KB)

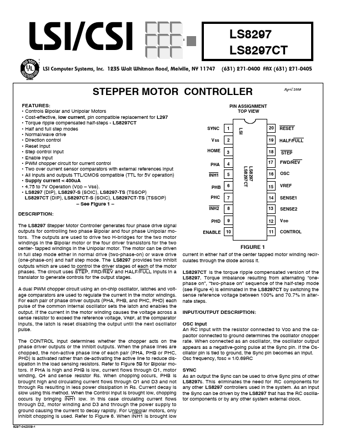

Preview of LS8297 PDF

Datasheet Details

Part number:

LS8297

Manufacturer:

LSI

File Size:

279.73 KB

Description:

Stepper motor controller.
