N80C196JQ, N80C196KR Datasheet - Intel Corporation

N80C196JQ, N80C196KR, (N80C196xx) COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER

www.DataSheet4U.com 87C196KR KQ 87C196JV JT 87C196JR JQ ADVANCED 16-BIT CHMOS MICROCONTROLLER Automotive Y Y Y Y b 40 C to a 125 C Ambient Y High .
Symbol VCC VSS VSS VSS VREF Main supply voltage ( a 5V) Digital circuit ground (0V) There are three VSS pins all of which MUST be connected to a sing.

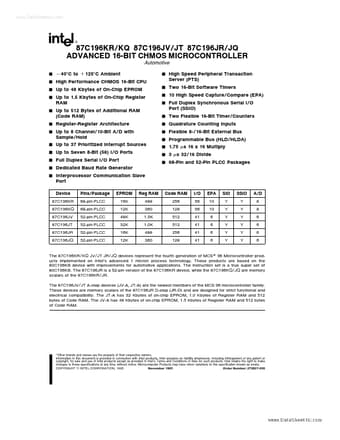

datasheet Preview Page 1 from Datasheet4u.com

N80C196KR_IntelCorporation.pdf

N80C196JQ Datasheet Preview — This datasheet PDF includes multiple part numbers: N80C196JQ, N80C196KR. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number:

N80C196JQ, N80C196KR

Manufacturer:

Intel Corporation

File Size:

314.82 KB

Description:

(N80C196xx) COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER

Note:

This datasheet PDF includes multiple part numbers: N80C196JQ, N80C196KR.
Please refer to the document for exact specifications by model.

Features

* Programmable A D Conversion and S H Times 10 Capture Compare I O with 2 Flexible Timers Synchronous Serial I O Port for Full Duplex Serial I O Total Utilization of ALL Available Pins (I O Mux’d with Control) 2 16-Bit Timers with Prescale Cascading and Quadrature Counting Capabilities

Applications

* The instruction set is a true super set of 80C196KB The 87C196JR is a 52-pin version of the 87C196KR device while the 87C196KQ JQ are memory scalars of the 87C196KR JR The 87C196JV JT A-step devices (JV-A JT-A) are the newest members of the MCS 96 microcontroller family These devices are memory scal
