N80C196JR

(N80C196xx) COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER

N80C196JR Datasheet (314.82 KB)

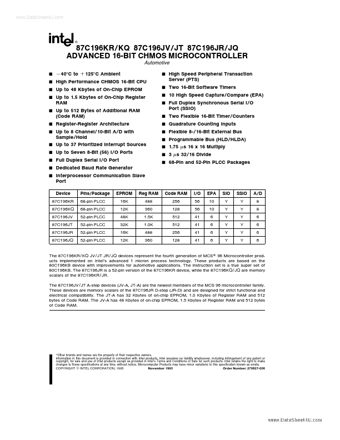

Preview of N80C196JR PDF Datasheet

Datasheet Details

Part number:

N80C196JR

Manufacturer:

Intel Corporation

File Size:

314.82 KB

Description:

(n80c196xx) commercial/express chmos microcontroller

N80C196JR Features

*  Programmable A D Conversion and S H Times  10 Capture Compare I O with 2 Flexible Timers  Synchronous Serial I O Port for Full Duplex Serial I O  Total Utilization of ALL Available Pins (I O Mux’d with Control)  2 16-Bit Timers with Prescale Cascading and Quadrature Counting Capabilities

N80C196JR General Description

Symbol VCC VSS VSS VSS VREF Main supply voltage ( a 5V) Digital circuit ground (0V) There are three VSS pins all of which MUST be connected to a single ground plane Reference for the A D converter ( a 5V) VREF is also the supply voltage to the analog portion of the A D converter and the logic used .
