N80C196KB Datasheet - Intel

N80C196KB CHMOS Microcontroller

External Memory or I O Internal ROM EPROM or External Memory (Determined by EA) Reserved Must contain FFH (Note 5) Upper Interrupt Vectors ROM EPROM Security Key Reserved Must contain FFH (Note 5) 270909 * 2 Address 0FFFFH 04000H 3FFFH 2080H 207FH 2040H 203FH 2030H 202FH 2020H 201FH 201AH 2.

8XC196KB 8XC196KB16 COMMERCIAL EXPRESS CHMOS MICROCONTROLLER Y 8 Kbytes of On-Chip ROM OTP Available 232 Byte Register File Register-to-Register Architecture 28 Interrupt Sources 16 Vectors 1 75 ms 16 x 16 Multiply (16 MHz) 3 0 ms 32 16 Divide (16 MHz) Powerdown and Idle Modes Five 8-Bit I O Ports 16-Bit Watchdog Timer 12 MHz and 16 MHz Available Dedicated 15-Bit Baud Rate Generator Y Dynamically Configurable 8-Bit or 16-Bit Buswidth Full Duplex Serial Port High Speed I O Subsystem 16-Bit Tim.

N80C196KB Features

* HSO 5) are

N80C196KB Datasheet (417.60 KB)

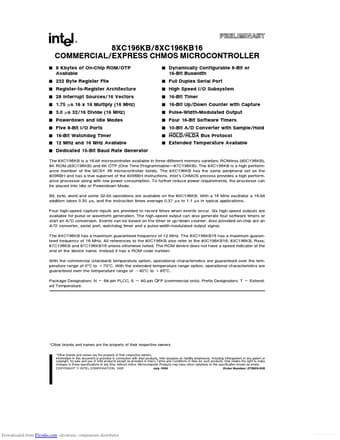

N80C196KB Datasheet Preview — Preview of N80C196KB PDF

Datasheet Details

Part number:

N80C196KB

Manufacturer:

Intel

File Size:

417.60 KB

Description:

Chmos microcontroller.
