N80C196JT, N80C196KR Datasheet - Intel Corporation

N80C196JT (N80C196xx) COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER

Symbol VCC VSS VSS VSS VREF Main supply voltage ( a 5V) Digital circuit ground (0V) There are three VSS pins all of which MUST be connected to a single ground plane Reference for the A D converter ( a 5V) VREF is also the supply voltage to the analog portion of the A D converter and the logic used .
www.DataSheet4U.com 87C196KR KQ 87C196JV JT 87C196JR JQ ADVANCED 16-BIT CHMOS MICROCONTROLLER Automotive Y Y Y Y b 40 C to a 125 C Ambient Y High Performance CHMOS 16-Bit CPU Up to 48 Kbytes of On-Chip EPROM Up to 1 5 Kbytes of On-Chip Register RAM Up to 512 Bytes of Additional RAM (Code RAM) Register-Register Architecture Up to 8 Channel 10-Bit A D with Sample Hold Up to 37 Prioritized Interrupt Sources Up to Seven 8-Bit (56) I O Ports Full Duplex Serial I O Port Dedicated Baud Rate Generat.

N80C196JT Features

*  Programmable A D Conversion and S H Times  10 Capture Compare I O with 2 Flexible Timers  Synchronous Serial I O Port for Full Duplex Serial I O  Total Utilization of ALL Available Pins (I O Mux’d with Control)  2 16-Bit Timers with Prescale Cascading and Quadrature Counting Capabilities

N80C196KR_IntelCorporation.pdf

This datasheet PDF includes multiple part numbers: N80C196JT, N80C196KR. Please refer to the document for exact specifications by model.

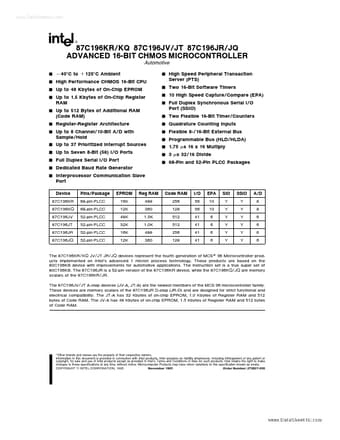

N80C196JT Datasheet Preview Page 2 N80C196JT Datasheet Preview Page 3

Datasheet Details

Part number:

N80C196JT, N80C196KR

Manufacturer:

Intel Corporation

File Size:

314.82 KB

Description:

(n80c196xx) commercial/express chmos microcontroller.

Note:

This datasheet PDF includes multiple part numbers: N80C196JT, N80C196KR.
Please refer to the document for exact specifications by model.
