PXA270 - Electrical/ Mechanical/ and Thermal Specification

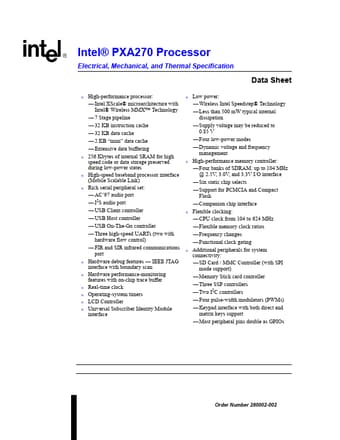

Intel® PXA270 Processor Electrical, Mechanical, and Thermal Specification Data Sheet n n n n n n n n n n High-performance processor: Intel XScale® microarchitecture with Intel® Wireless MMX™ Technology 7 Stage pipeline 32 KB instruction cache 32 KB data cache 2 KB “mini” data cache Extensive data buffering 256 Kbytes of internal SRAM for high speed code or data storage preserved during low-power states High-speed baseband processor

PXA270 Features

* IEEE JTAG interface with boundary scan Hardware performance-monitoring features with on-chip trace buffer Real-time clock Operating-system timers LCD Controller Universal Subscriber Identity Module interface n n n n Low power:

* Wireless Intel Speedstep® Technology

* L
